Summarization:

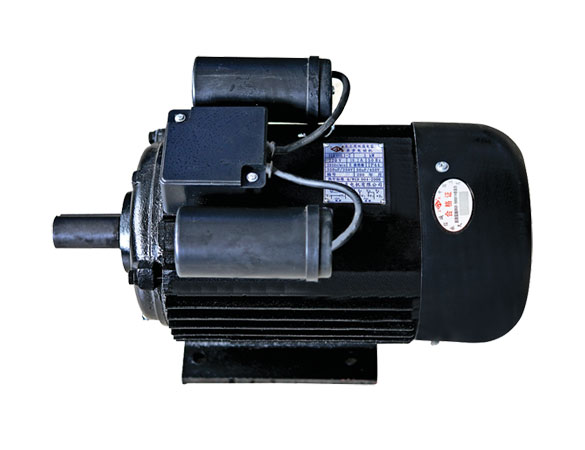

YLM series motor is full-close rat-cage single-phase two-value capacitor asynchronous motor self-cooled by fan. The motor is manufactured for small multifunctional wood working machine. The series motor is of the characteristic of large starting torque, strong ability of over loading, low temperature raise, small vibrancy, low yawp, great reliability, easy maintenance.
YLM series motor is widely used to varilous wood working machine.

Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt：220V
Rated Frequency：50Hz
Working System：S1
Insulation Grade：E或B（E OR B）
Protection Grade：IP44
Cooling Type：IC 411

Technical data

Type	Rated power (KW)	Rated Volt (V)	Rated current (V)	Rated speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked current (A)	Locked-rotor torque/Rated torque	Maximal torque/Rated torque	Yawp dB(A)
Synchronous speed 3000r/min 2pole
YLM7112	0.37	220	2.7	2800	67	0.93	16	2.0	1.8	72
YLM7122	0.55		3.84	2800	70	0.93	21	2.0		72
YLM8012	0.75		5.04	2800	72	0.94	29	2.1		75
YLM8022	1.1		7.02	2800	75	0.95	40	2.1		75
YLM90S-2	1.5		9.44	2800	76	0.95	55	2.0		78
YLM90L-2	2.2		13.7	2800	77	0.95	80	2.0		78
YLM90L3-2	2.7		15	2800	78	0.95	110	1.9		78
YLM90L4-2	3		18	2800	79	0.95	125	1.9		83
YLM100L-2	3		18.2	2800	79	0.95	125	1.9		83
YLM100L2-2	3.7		20.5	2800	79	0.96	150	1.8		83
Synchronous speed 1500r/min 4pole
YLM7114	0.25	220	1.97	1400	62	0.93	12	2.0	1.8	67
YLM7124	0.37		2.78	1400	65	0.93	16	2.0		67
YLM8014	0.55		4	1400	68	0.93	21	2.1		70
YLM8024	0.75		5.16	1400	71	0.93	29	2.0		70
YLM90S-4	1.1		7.21	1400	73	0.95	40	2.0		73
YLM90L-4	1.5		9.57	1400	75	0.95	55	1.9		73
YLM90L2-4	2.2		13	1400	76	0.95	80	1.9		78
YLM100L-4	2.2		13.9	1400	76	0.95	80	1.9		78
YLM100L2-4	3		17.5	1400	77	0.95	125	1.9		78
YLM100L3-4	3.7		21.3	1400	78	0.96	150	1.8		80
